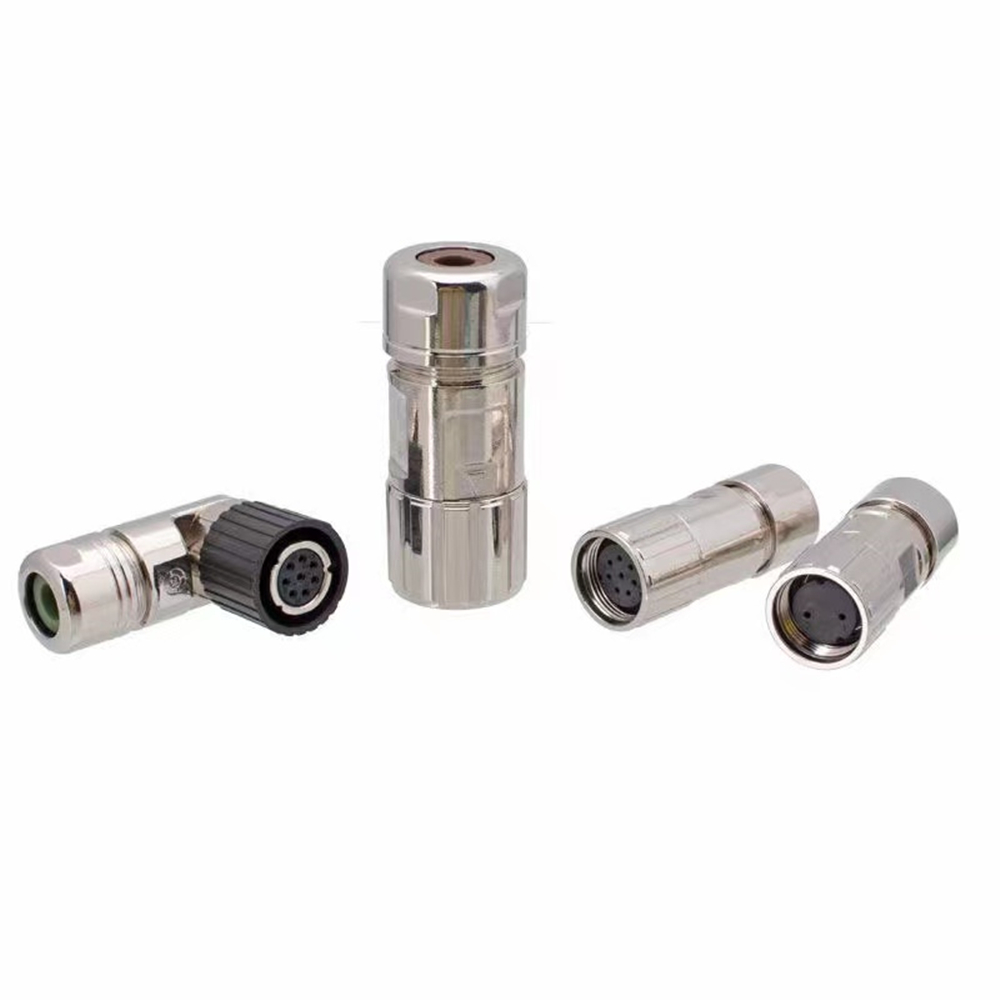

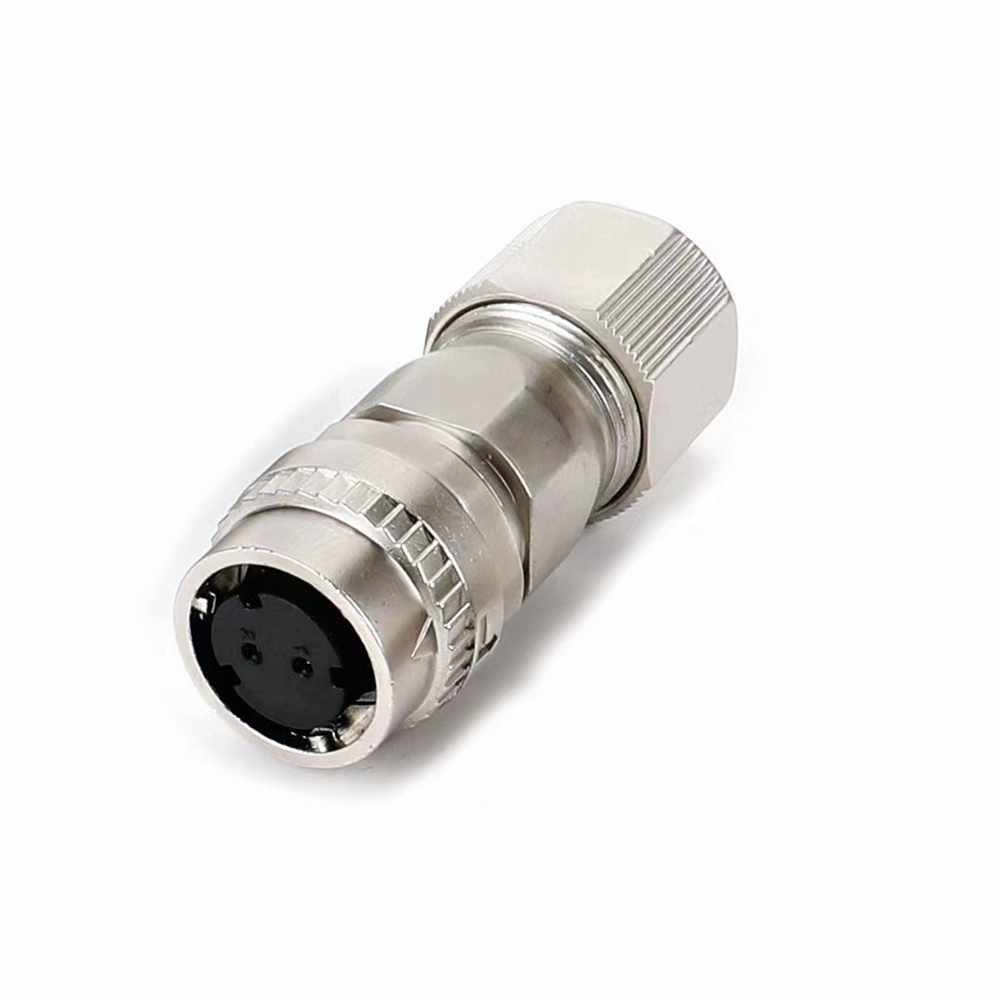

Small Sized Waterproof Circular Connector CM10 2P One-Touch Locking connector

Part No.: CM10-AP10-M
One-Touch Locking Circular Connector CM10
Description: Signal circular connector CM10 2Pin 10Pin
Samples lead time: 3~5days.
Mass Production Delivery date :1~2weeks confirmed order.

------------------------------------------------------------------------------------------------------------------

FEATURES:

•Small sized circular connector CM10 series 2P,10P are available

• Zinc alloy and Platic Tail clip are options, Waterproof IP67

• DIP version and Right angle are available

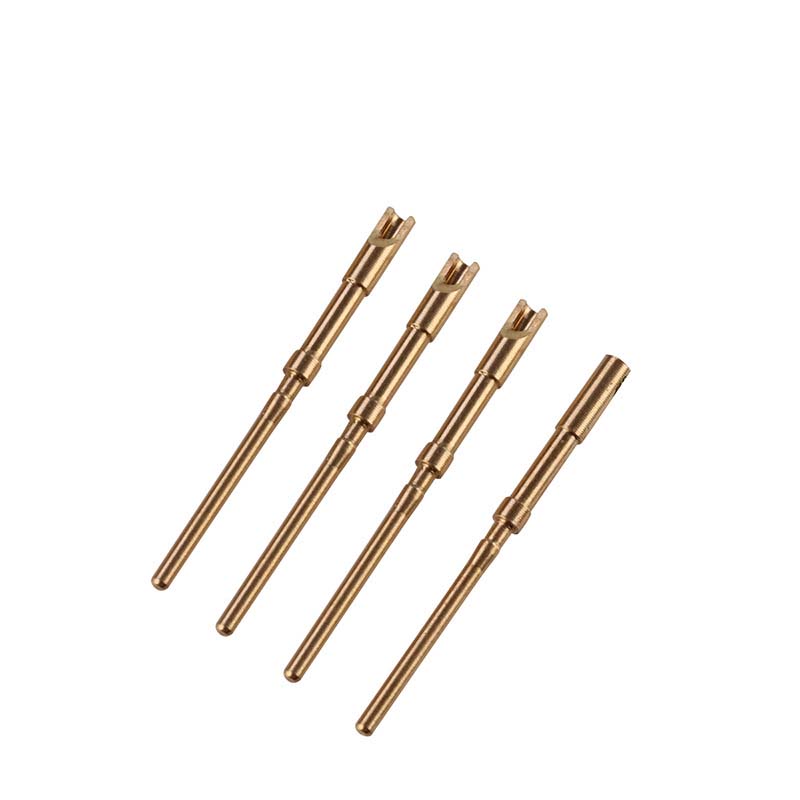

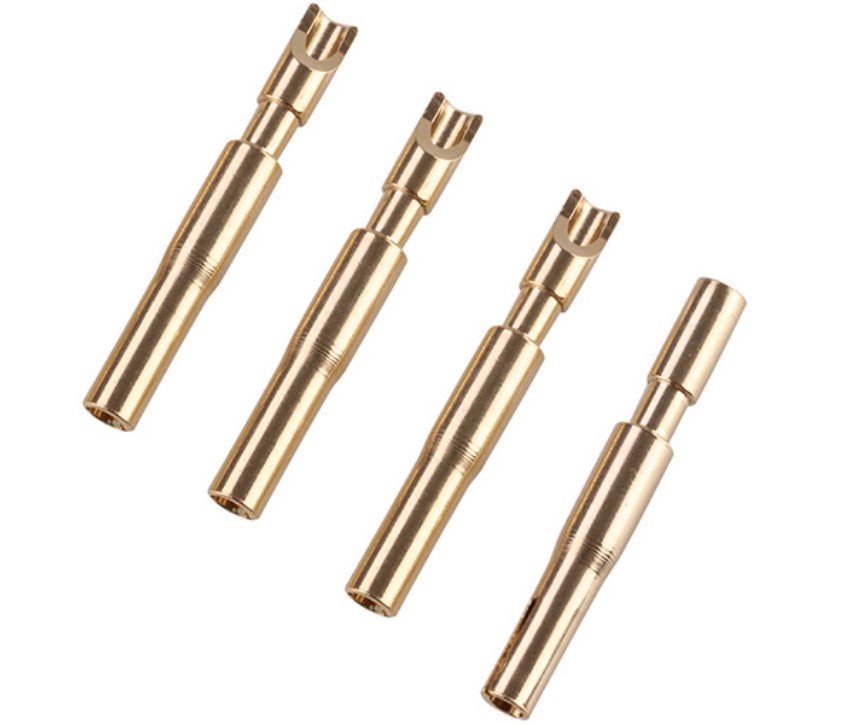

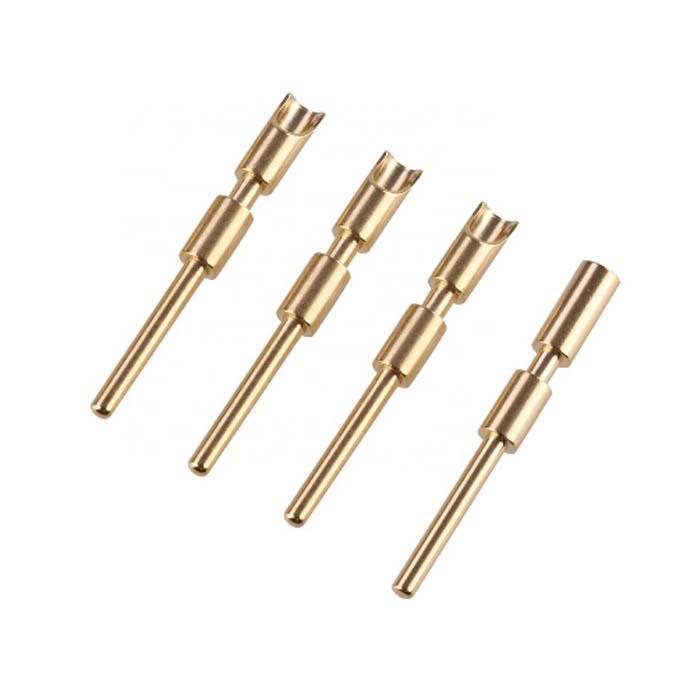

• Customized contact pins Warmly welcome LOW MOQ.

SPECIFICATIONS:

• Materials Contact:Phosphor Copper C5210EH

• Materials Body: Zinc Alloy

• Electrical properties Rated current: 3.0A

• Rated voltage: 220V AC

• Withstand voltage: 900V AC/min

• Insulation resistance: above 1000MΩ, plus 500V DC

• Contacts Application Wire gauge:#22(0.33mm2)

• Environment Operating temperature: -25~85°C.

------------------------------------------------------------------------------------------------------------------

Welocme to inquiry DDK Connector series!

*DDK Connector CM10 2P 10P Female Plug and Socket Connector

and IEEE1394,MDR,SDR,PCR, 5015, RJ45,USB Seires  Industrial Connectors are available

As well as providing Board to Board Connector,Circular connectors, also wire to board connectors and cable assemblies offering ONE-STOP SERVICE.

Please do not hesitate contact us sales@dghonshi.com, thank you!
