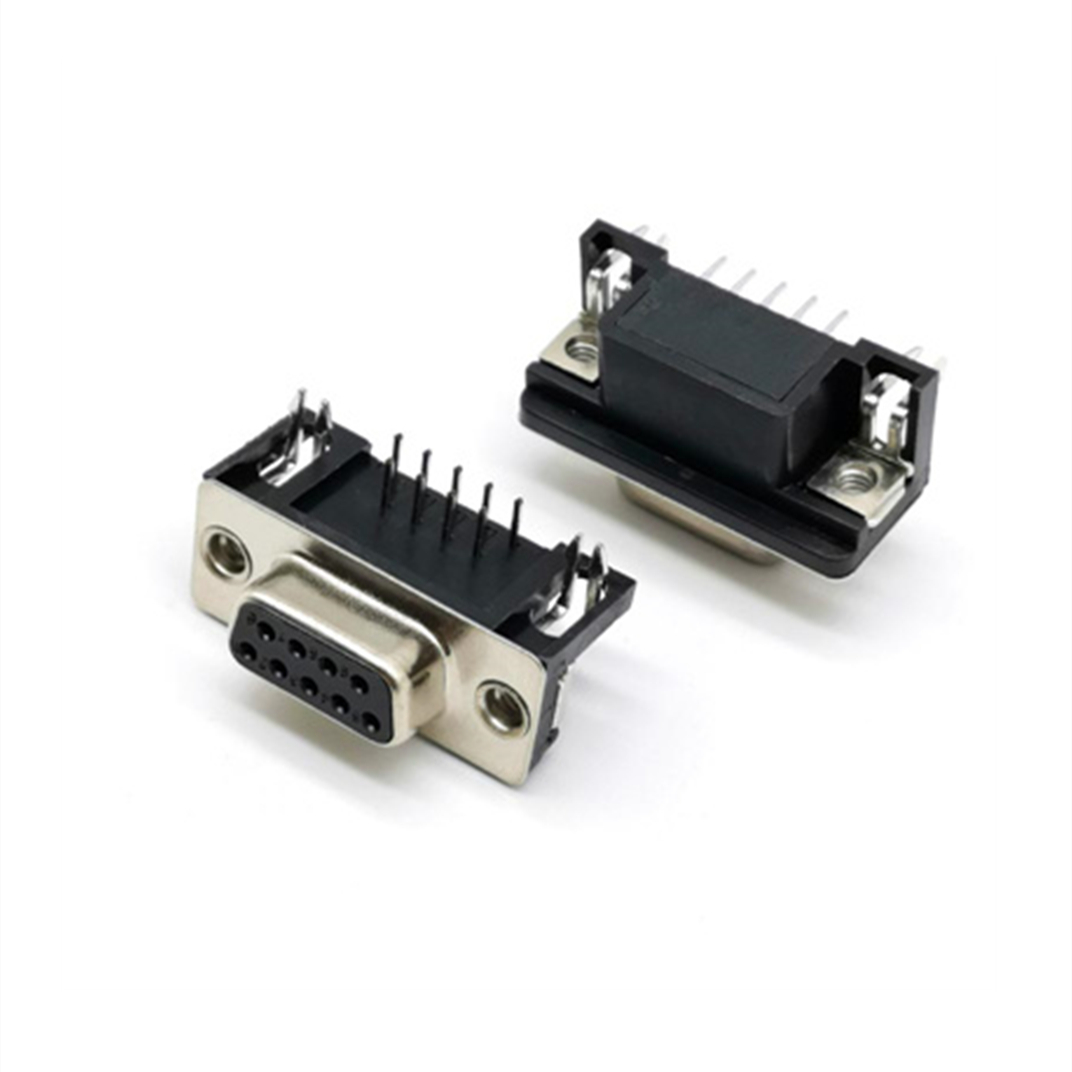

D-Sub Connector 9P/15P/25P/37P Male and Female PCB Right Angle

2D(PDF) Drawing

Part No.:DB-ARFXXXXBXX

Pins Spec.:9P/15P/25P/37P

Packing:Tray packing

Delivery Time:15~20Days

SPECIFICATIONS

• Insulator Material: PBT +30% Glass Fiber(UL94V-0)

• Contact Material: Brass

• Contact Plating: Selective Gold Plating over Nickel

• Shell Material and Plating: Steel, Sn or Ni Plated

• Current Rating : 5AMP

• Withstand Voltage: 500V  AC/DC

• Insulation Resistance: 5000 Mega ohms Min.

• Contact Resistance:30mega ohms max,at DC 100mA

• Operating Temperature: -55C to +105C
