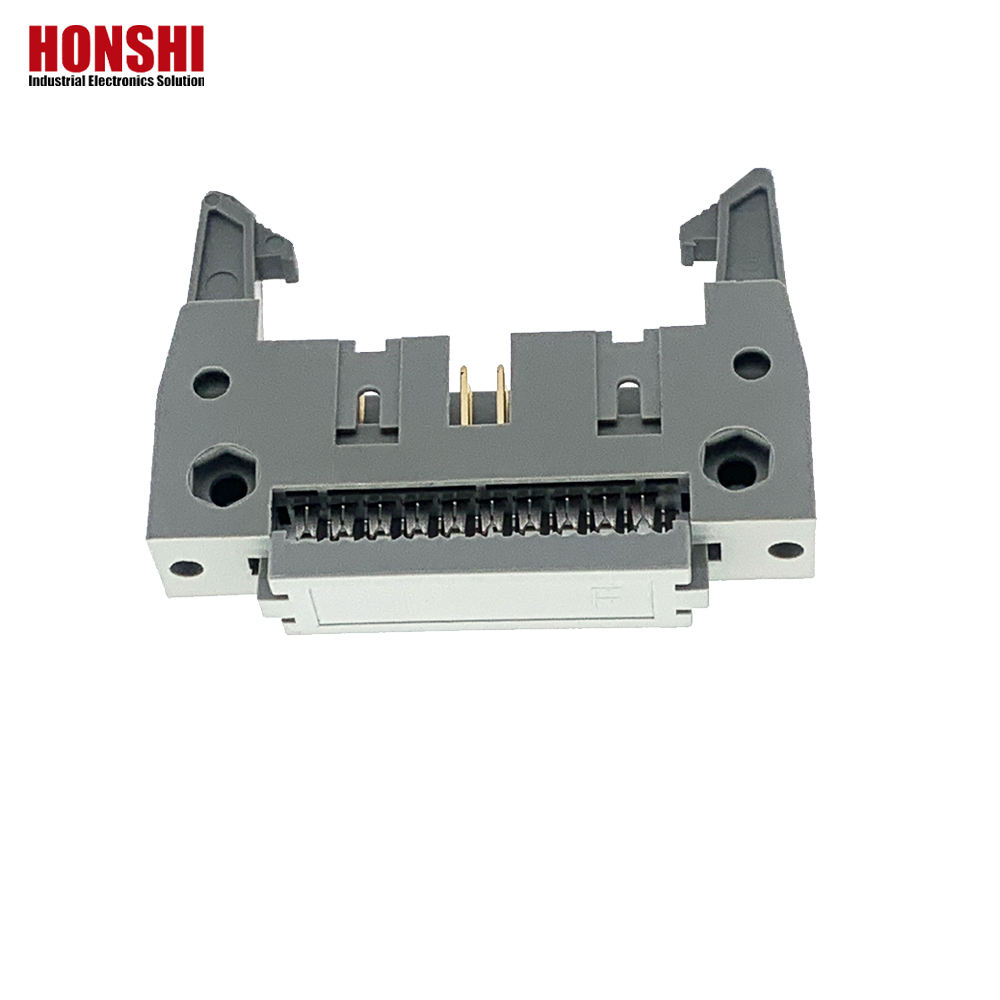

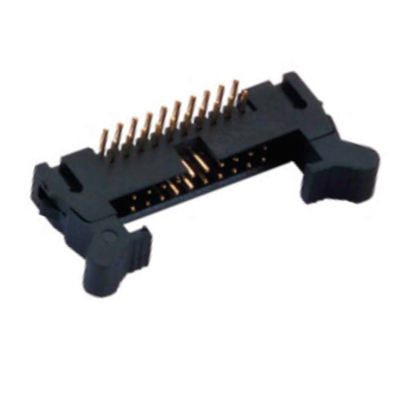

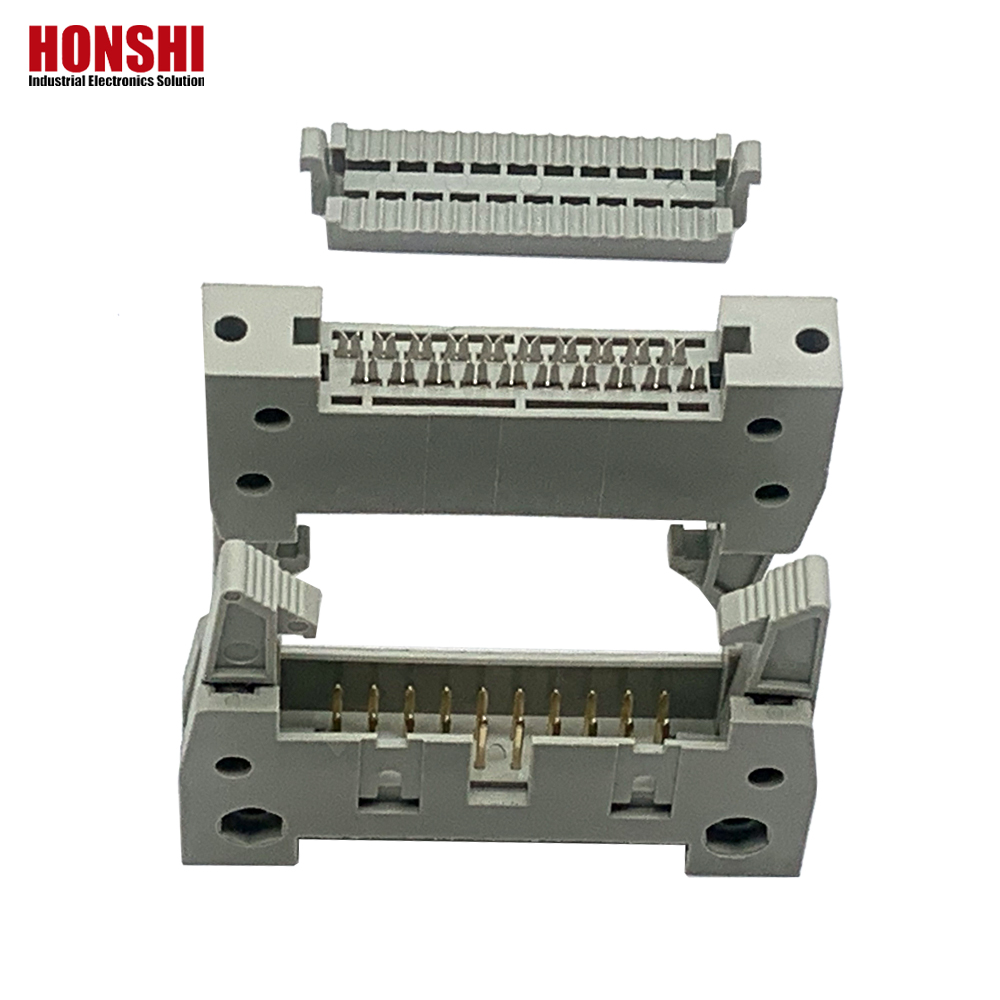

2.54mm Ejector Connector 6-64Pin with Latch IDC type

2D(PDF) Drawing

Part No.:  5815-XXIXXXXX01

Description: 2.54mm Ejector Connector with Latch IDC type
Position: 6P TO 64P
Type: IDC
Packing:PE Bag/Tray/Tube/Reel
MOQ: 1000pcs
Free samples:10pcs samples within 5 workdays time.

FEATURES

• Wide variety of plating thickness options

• Custom insulators are available

• High Temperature Materials are available

----------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

• Insulator Material: PBT

• Contact Material: Brass

• Contact Plating: Au or Sn Over Ni

• Current Rating: 3.0A

• Withstand Voltage: 500V  AC/DC

• Insulation Resistance: 1000 Mega ohms Min.

• Operating Temperature: -40°C to +105°C

----------------------------------------------------------------------------------------------------------------------------------------------
