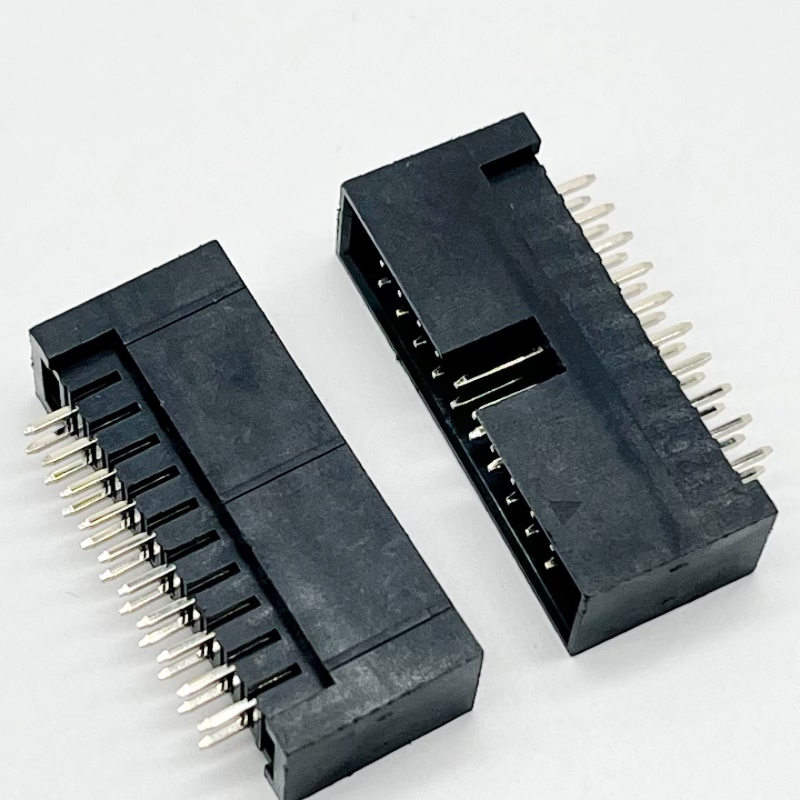

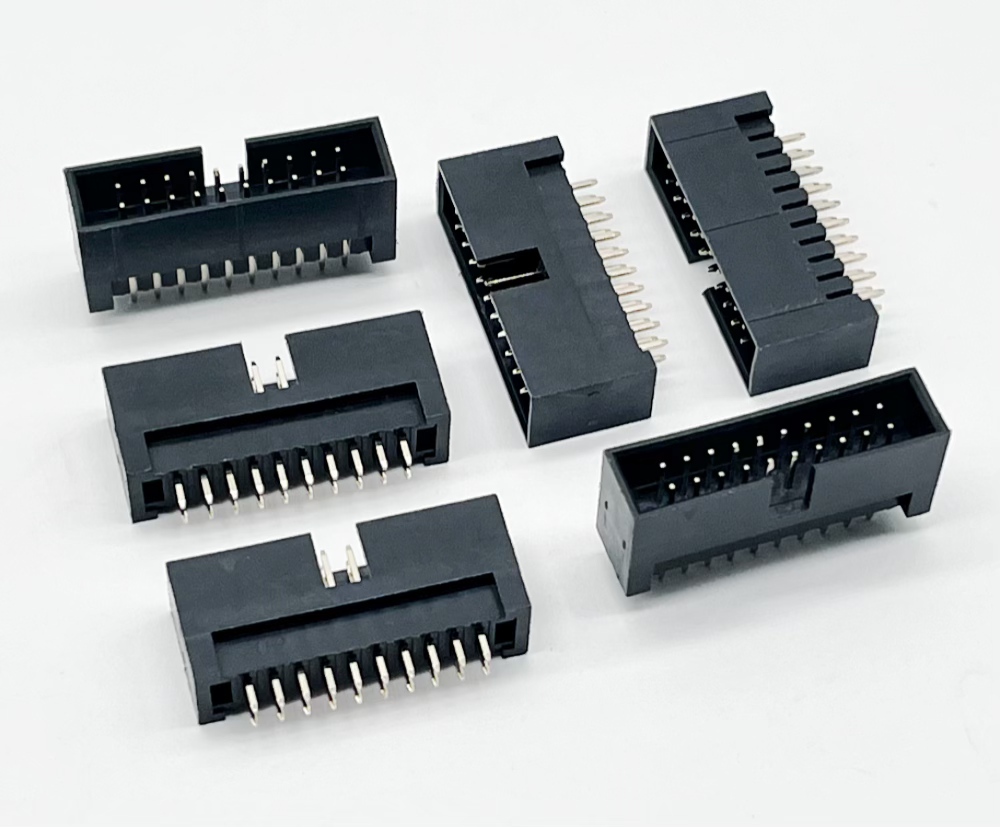

2.54mm Box Header H13.6mm Gold Plated Straight Dual Row Customized High Quality Electrical Connector Box Header

2D(PDF) Drawing

Part No.:  4813-136XXSXXXXX01

Description: 2.54mm Box Header H13.6mm 6P To 64P  Dip type
Position: 6P TO 64P
Type: SMT
Plastic height: 8.8/9.7/10.9/13.6mm
Packing:PE Bag/Tray/Tube/Reel
MOQ: 1000pcs
Free samples:10pcs samples within 5 workdays time.

FEATURES

• Wide variety of plating thickness options

• Custom insulators are available

• High Temperature Materials are available

----------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

• Insulator Material: PA6T

• Contact Material: Brass

• Contact Plating: Au or Sn Over Ni

• Current Rating: 3.0A

• Withstand Voltage: 500V  AC/DC

• Insulation Resistance: 1000 Mega ohms Min.

• Operating Temperature: -40°C to +105°C

----------------------------------------------------------------------------------------------------------------------------------------------
