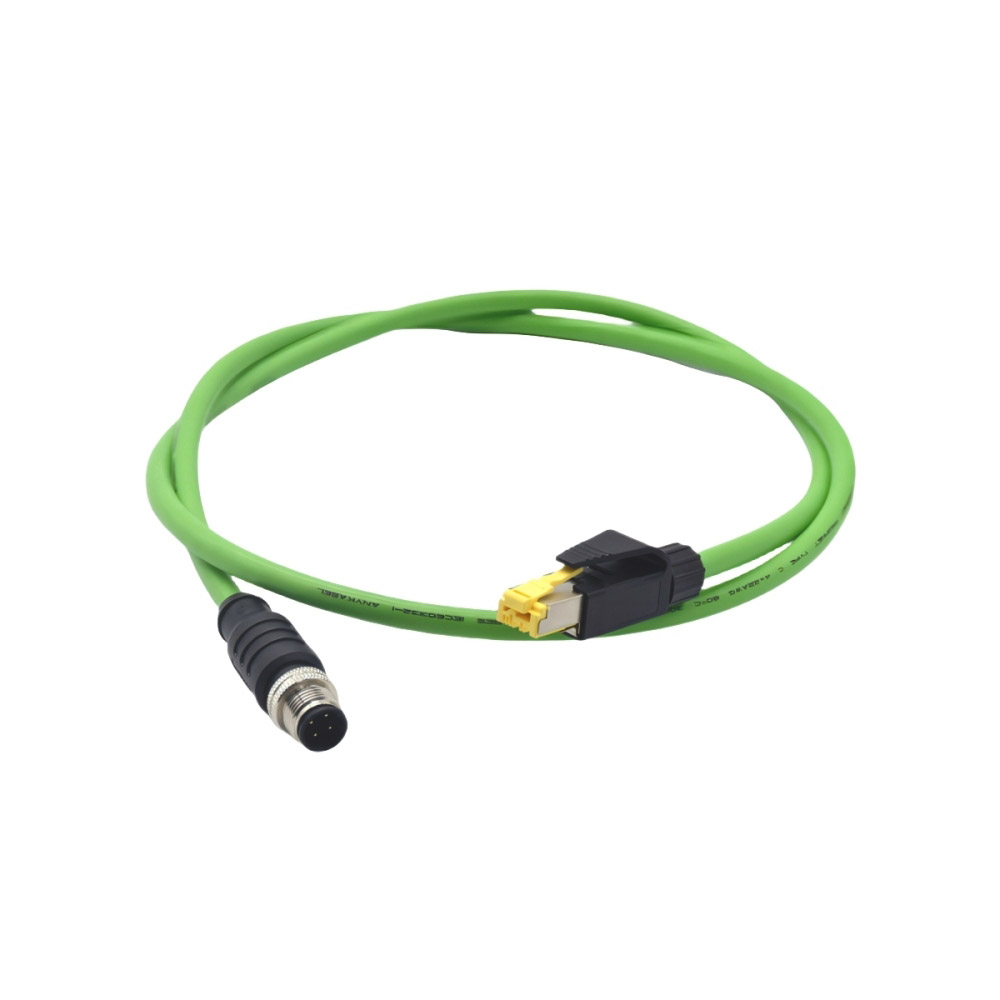

M12-4P D Code to RJ45 Cat5e Industrial PUR cable with Shield
Part No.：MH104SXXXXE01
Cable Spec.:M8/M12-4P D Code to RJ45 Cat5e Industrial PUR cable with Shield
Packing:PE.Bag
Delivery Time:10~15Days
• M8/M12-4P D Code Male connectot TO RJ45
• PUR Cable 22AWG*4,With Shield，Cable color Black/Grey/Green/Purple
• Lock Type：Screw，Solder/Crimp wire，waterproof level：IP67
• Support custom cable lengths，printed、sub-line.
----------------------------------------------------------------------------------------------------------------------------------------------
Industrial CAT5e PUR Cable can be choose specifications.
|
Type |
Industrial type A |
Industrial type B |
Industrial type C |
|
Cable Spec. |
4*22awg/19 |
4*22awg/1 |
4*22awg/7 |
|
Conductor |
1/0.64mm |
7/0.25mm |
19/0.15mm |
|
Wire |
22awg |
22awg |
22awg |
|
CoreWire OD |
1.48mm |
1.55mm |
1.55mm |
|
CorewireColor |
White,Yellow,Blue,Orange |
White,Yellow,Blue,Orange |
White,Yellow,Blue,Orange |
|
Structure |
4-core stranded structure |
4-core stranded structure |
4-core stranded structure |
|
cross-section |
0.34mm2 |
0.34mm2 |
0.34mm2 |
|
Jacket |
PVC |
PVC |
PUR |
|
Inner Jacket |
PVC |
PVC |
FRNC |
|
Cable color |
Green |
Green |
Green |
|
Shield |
SF/UTPAluminum foil + tinned copper |
SF/UTPAluminum foil + tinned copper |
SF/UTPAluminum foil + tinned copper |
|
Application |
Fixed wiring |
Fixed or occasional mobile cabling |
Frequent Motion Control Wiring |
|
Cable ODmm |
6.5mm |
6.5mm |
6.5mm |
----------------------------------------------------------------------------------------------------------------------------------------------
Welocme to inquiry Industrial Cable and mating Connector series!
*M8/M12 Circular connecor cable assembly,also RJ45 Cat5e cable series
and mating I/O connector, Terminal block,Terminals are available
As well as providing Board to Board Connector, Wire to Board Connector,Circular connectors, also I/O connectors and cable assemblies offering ONE-STOP SERVICE.
Please do not hesitate contact us sales@dghonshi.com, thank you!
