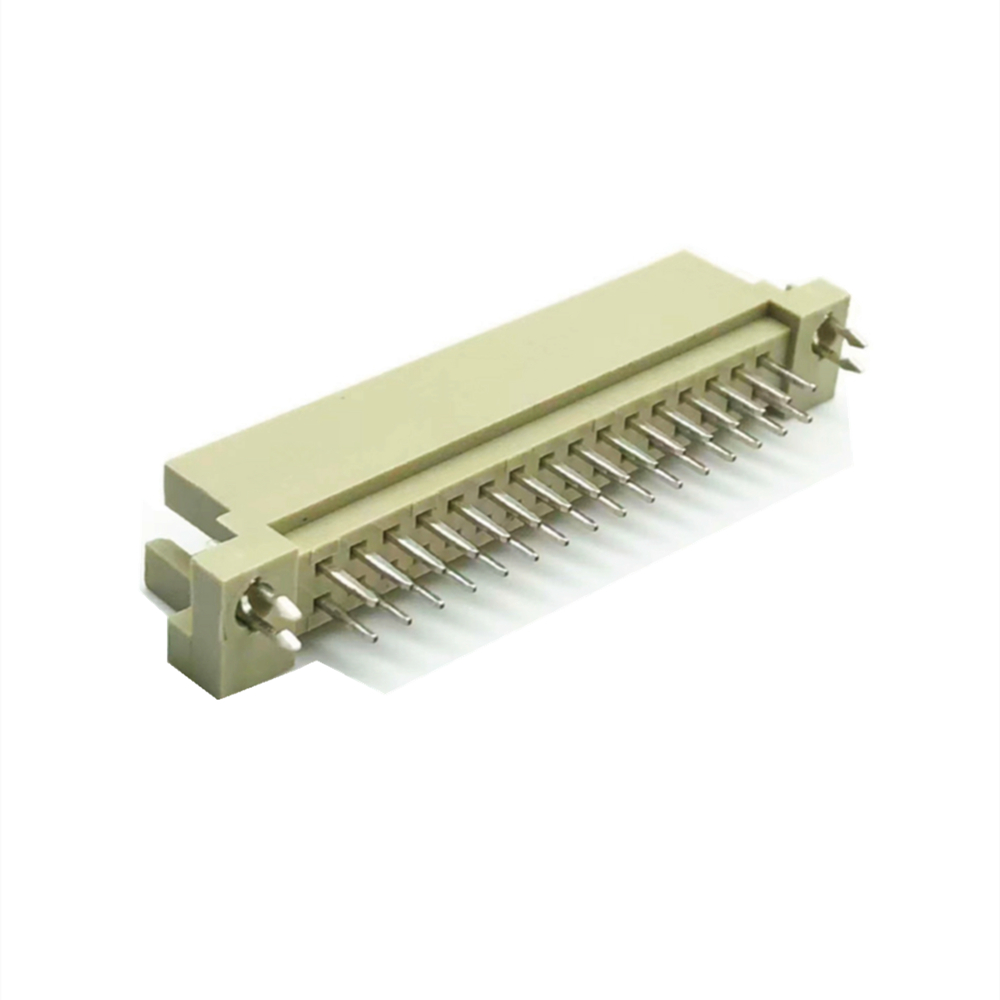

• High Density EDGE Connector DIN41612

• Contact Spacing: 2.54 x 2.54mm 2rows~5rows

                 5.08 x 2.54mm 2rows~5rows

• Available in options sizes: 20 positions~160 positions

• Contact in two type:DIP, Press-Fit

• Custom Contact(A+C,B Empty ) or Custom insulators are available

----------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

• Current Rating: 3.0 AMP

• Withstand Voltage: 1000V  AC/DC

• Insulation Resistance: 1000 Mega ohms Min.

• Contact Material: Brass

• Contact Plating:Selective Gold Plating over Nickel with Tin Plated Tails

• Insulator Material: Polyester(UL94V-0)

• Standard: PBT

• Operating Temperature: -40°C to +105°C

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Welocme to inquiry DIN4612 Connector series!

*DIN41612 Connector, Future Bus, Board to Board Connector,

and  IEEE1394, SDR,PCR,DDK,5015, RJ45,USB Seires  Industrial Connectors are available

As well as providing Board to Board Connector,Circular connectors, also wire to board connectors and cable assemblies offering ONE-STOP SERVICE.

Please do not hesitate contact us sales@dghonshi.com, thank you!
