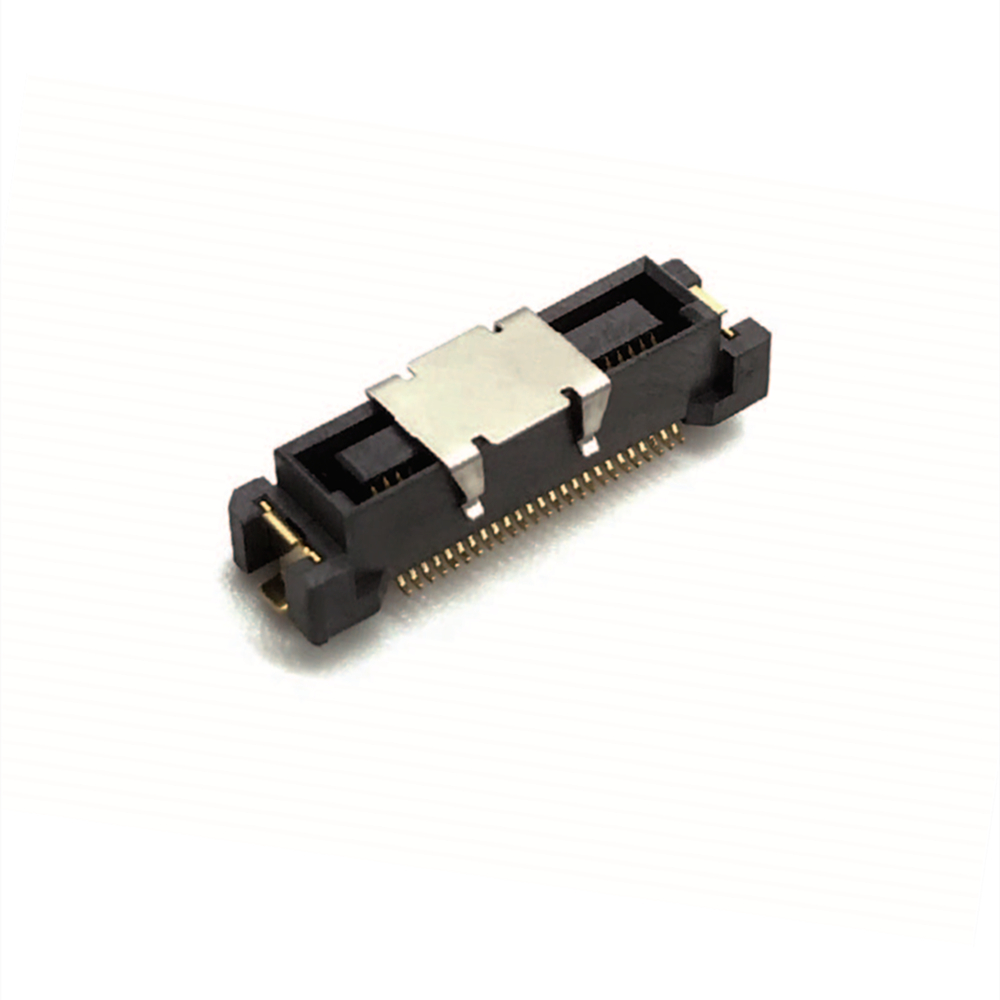

0.635MM Board to Board Connector SMT H5.9MM Male 30Pin 40Pin 50Pin 52Pin Connector
2D(PDF) Drawing
Part No.:2841-XXXM059XXXX01
Conn Spec.:0.635mm Board to Board Connector , Male,30Pin 40Pin 50Pin 52Pin, SMT Type,ASSY H8.0,16.0mm,H17.5mm
Packing: Tape&Reel
Delivery Time:10~15Days
• Board to Board Connector SMT Type
• Contact No.: 10Pin TO 100Pin
• Available in options Pitch: 0.5mm、 0.635mm、 0.8mm、 1.00mm、 1.27mm、2.54mm
----------------------------------------------------------------------------------------------------------------------------------------------
SPECIFICATIONS
• Current Rating: 0.5 AMP
• Withstand Voltage: 200V AC/DC
• Insulation Resistance: 500 Mega ohms Min.
• Contact Material: Brass
• Contact Plating: Au or Sn over Ni
• Insulator Material: Polyester(UL94V-0)
• Standard: PA46
• Operating Temperature: -40°C to +105°C
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------
