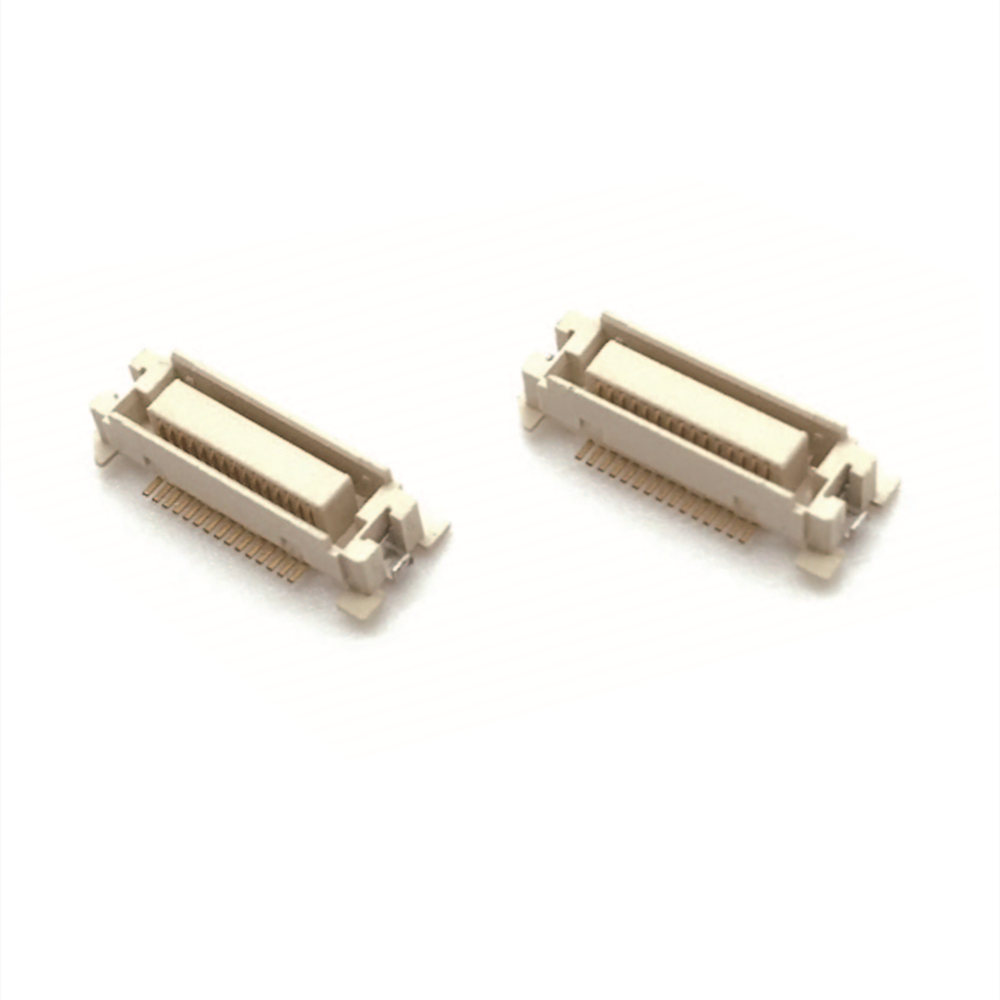

• Board to Board Connector SMT Type

• Contact No.: 10Pin TO 100Pin

• Available in options Pitch: 0.5mm、 0.635mm、 0.8mm、 1.00mm、 1.27mm、2.54mm

----------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

• Current Rating: 0.5 AMP

• Withstand Voltage: 200V  AC/DC

• Insulation Resistance: 500 Mega ohms Min.

• Contact Material: Brass

• Contact Plating: Au or Sn over Ni

• Insulator Material: Polyester(UL94V-0)

• Standard: PA46

• Operating Temperature: -40°C to +105°C

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Welocme to inquiry Board to Board Connector series!

*Board to Board Connector, High speed BTB Connector

and  IEEE1394, SDR,PCR,DDK,5015, RJ45,USB Seires  Industrial Connectors are available

As well as providing Board to Board Connector,Circular connectors, also wire to board connectors and cable assemblies offering ONE-STOP SERVICE.

Please do not hesitate contact us sales@dghonshi.com, thank you!
