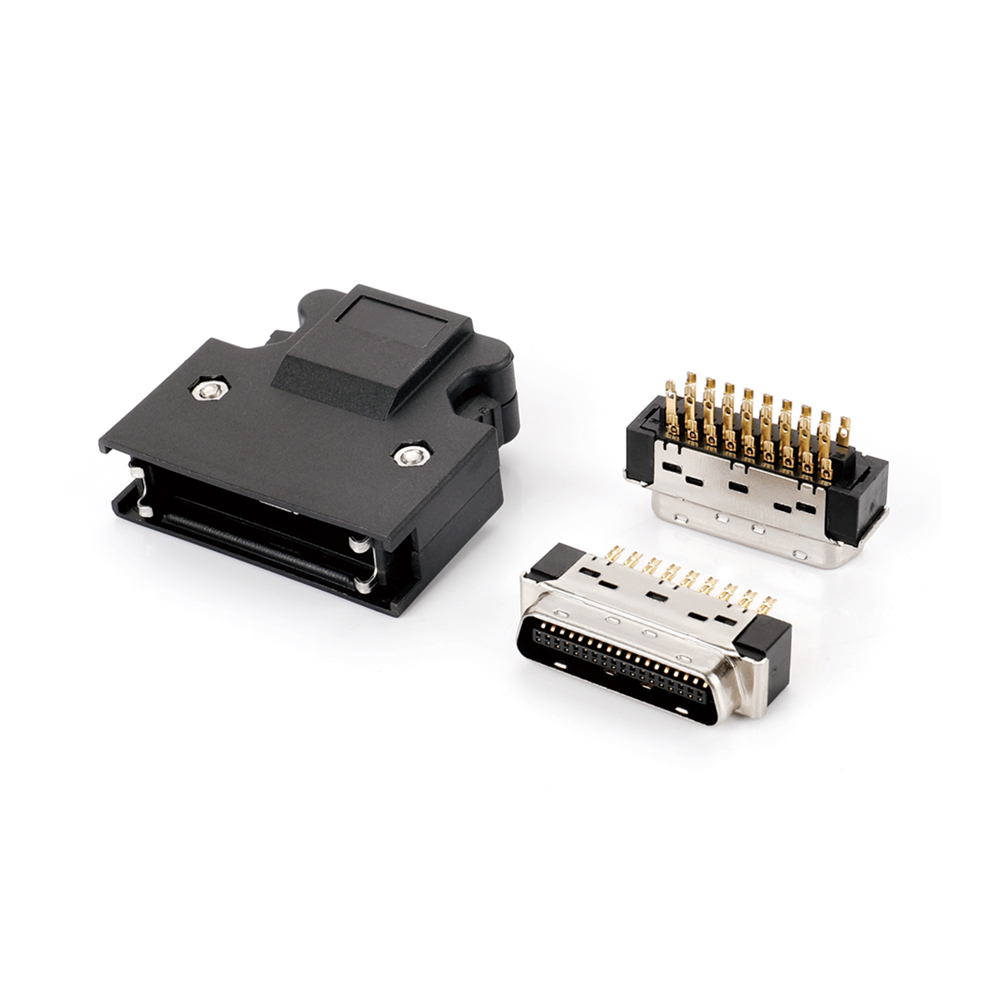

• SM SCSI Connector Solder Wire Type

• Contact No.: 14Pin,20Pin,26Pin,36Pin,50Pin

• Available in options sizes: OD10.0,OD14.0

----------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

• Current Rating: 3.0 AMP

• Contact Resistance:20 mega ohms Max

• Withstand Voltage: 1000V  AC/DC

• Insulation Resistance: 1000 Mega ohms Min.

• Contact Material: Brass

• Contact Plating: Au or Sn over Ni

• Insulator Material: Polyester(UL94V-0)

• Standard: PA6T Black

• Operating Temperature: -40°C to +105°C

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Welocme to inquiry MDR SCSI Connector series!

*MDR SCSI Connector 14Pin 20Pin 26Pin 36Pin 50Pin, IEEE1394 6Pin 10Pin Connector

and  SDR,PCR,DDK,5015, RJ45,USB Seires  Industrial Connectors are available

As well as providing Board to Board Connector,Circular connectors, also wire to board connectors and cable assemblies offering ONE-STOP SERVICE.
